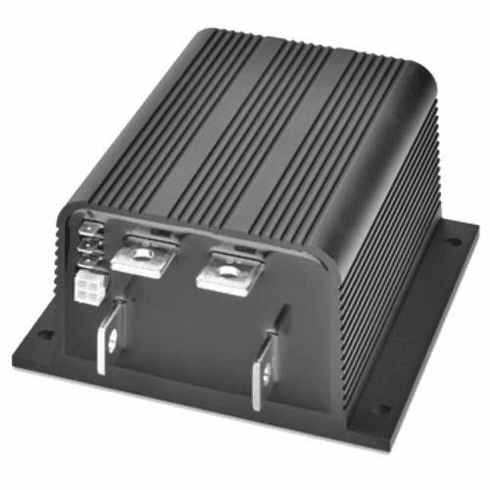

Controller Curtis 500A, 5K-0 36/48V Series
(click the above image for a larger view)
Product Description
Curtis (1205) 500 amp, 36-48 volt long body controller with four buss bars is pre-set for 0-5K throttle. It can be adjusted with a hand held Curtis programmer , (Item # 1313-3301), for use with 8 other throttle inputs. Many other parameters such as acceleration, HPD, voltage, plugging and more are also adjustable, Specifications:, For use with Club Car DS (Years 1990-1996), Curtis Model: 1205M, 500 Amp, Throttle Input: 0-5K, Performance: Added Torque | OEM Cross Reference: Manufacturer & Part Number AXE4845P AL CC 1204S-5402 CR 1205-108 CR 1205-110 CR 1205-206 CR 1205M-5605 CR 1205X-4402 CR 1205X-4417 CR 1205X-5302 CR
